Metallurgy Measurement Solutions for Bulk Solids and Process Level Monitoring

Metallurgical facilities face challenging measurement conditions, including high temperatures, heavy dust, vibration, and corrosive environments. RETTAR provides measurement solutions for two key applications: 3D bulk volume measurement in coal bunkers and storage sheds, and point-level monitoring in blast furnaces and coke dry quenching (CDQ) chambers.

For coal bunkers, 3D scanning technology measures bulk material volumes with a measurement error of within 2% of full storage capacity under specified conditions. For coal storage sheds, the solution achieves a measurement error of within 0.5% of full storage capacity under specified conditions. These solutions help operators monitor inventory, track material volumes, and improve stock management.

For blast furnaces and CDQ chambers, point-level measurement devices provide level information at designated process locations to support operational monitoring. RETTAR offers 3D radar scanners, inventory software, radar level transmitters, and level switches to meet different measurement requirements. Technology selection depends on material properties, process conditions, temperature, dust levels, and installation requirements.

Precision Metallurgy Monitoring: Reliable Solutions for Extreme Environments

We provide high-temperature, non-contact sensing for slag level control and automated volume calculation of raw material stockpiles, ensuring process stability and enhanced safety in the harshest industrial conditions.

Reliability in Extreme Conditions.

Chemical Corrosion

Specialized, highly durable sensors resist degradation from acidic gases and corrosive materials such as concentrated acids and pickling solutions, preventing hazardous leaks and downtime.

Raw Inventory

We utilize long-range 3D Scanning to accurately map massive, irregular raw material stockpiles, eliminating financial reconciliation errors and supply risks.

Dust & Steam

Advanced High-Frequency Radar is engineered to cut through dense dust and steam at transfer points, ensuring reliable flow and level data for continuous conveyor operations.

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Yard

Automate inventory reconciliation and optimize logistics by replacing hazardous manual surveys with precise, continuous 3D volume data in high-dust and high-heat conditions.

Level
Volume

Products: 3D Laser Scanner, Radar Level Transmitter

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Silo

Guarantee continuous production and prevent costly overfills by automating inventory tracking for alumina powder, flux, and blast furnace feed silos, even in dense dust.

Level
Volume
Limit

Products: 3D Radar Scanner, Pro Inventory Software, Radar Level Transmitter, Level Switches

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Bin

Prevent production bottlenecks and feeder damage by automating level detection in ore bins and alumina feed boxes, ensuring seamless material supply to process lines.

Level
Limit

Products: Radar Level Transmitter, Level Switches

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Tank

Maintain process stability and safety by delivering high-precision tracking of level, interface, and density for cooling water, slurries, and hazardous chemical reactors.

Level
Interface
Density

Products: Radar Level Transmitter, Density Meter, Guided Wave Interface Meter

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Belt

Eliminate unplanned downtime and equipment damage by providing real-time flow monitoring and early blockage detection for bucket elevators and chutes.

Flow
Blockage
Speed
Granularity

Products: Laser Profile Scanner, Belt Auto-Alignment System, Conveyor Laser Flow Meter, Level Switches, Blockage Switches

Metallurgy Solutions - 3D silo volume measurement丨RETTAR

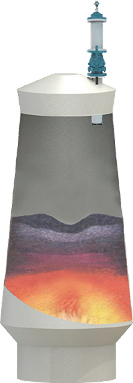

Furnace

Maximize smelting efficiency and ensure stable operation in blast furnaces and coke ovens by delivering reliable material level data under extreme pressure and heat.

Level

Products: Blast Furnace Level Probe

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Wastewater

Ensure environmental compliance and stable FGD (desulfurization) operations by accurately tracking slurry density and liquid levels in complex wastewater treatment systems.

Level
Density
Flow
Interface

Products: Density Meter, Ultrasonic Level Sensor, Flow Meter

Built for Precision Metallurgy Operations
Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Extreme Temperature

Our sensors are engineered to provide reliable, non-contact level monitoring in heat-intensive zones up to 1600°C, utilizing specialized cooling jackets and thermal standoff mounts to protect electronic integrity from intense radiant heat during smelting operations.

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Advanced Signal Processing for Ultra-Fine Dust

Designed to penetrate the densest alumina and sinter dust clouds, our high-frequency radar technology uses sophisticated algorithms to filter out signal noise from fine particles, delivering a precise 3D map of the material surface where traditional sensors often fail.

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
High-Grade Corrosion & Chemical Resistance

To combat the aggressive nature of slag and chemical additives, our transmitter housings are constructed from high-grade, corrosion-resistant alloys and specialized stainless steel, ensuring maximum endurance and preventing hardware degradation in highly acidic metallurgical environments.

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Vibration-Immune Measurement Technology

Equipment located near heavy-duty crushers and sintering feeders is subjected to intense structural vibration; our devices incorporate internal signal dampening and shock-isolated electronics to decouple the sensor from mechanical stress, maintaining sustained data accuracy and reliability.

Metallurgy Solutions - 3D silo volume measurement丨RETTAR

Point-Level Measurement for Blast Furnaces and CDQ Chambers

Focused point-level monitoring for critical process locations.

Measure material level at a defined point in blast furnaces and coke dry quenching (CDQ) chambers. This point-level solution provides targeted level information to help operators monitor material conditions and support process control in demanding metallurgical environments.

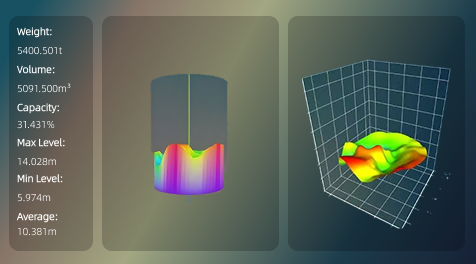

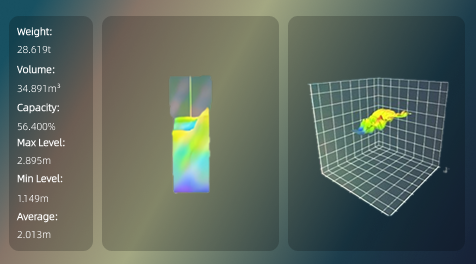

Coal Bunker and Coal Storage Shed Volume Measurement

Volume measurement with an error of within 2% of full storage capacity, subject to specified operating conditions and measurement criteria.

Monitor bulk coal inventory in bunkers and storage sheds with 3D measurement technology. Generate volume measurements across the storage area to help operators understand stock levels, track inventory changes and improve material management.

Metallurgy Solutions - 3D silo volume measurement丨RETTAR
Metallurgy Solutions - 3D silo volume measurement丨RETTAR

Pellet & Ore Storage
Maintenance Costs -50%

Abrasion-Resistant Level Monitoring

Replaced high-maintenance contact probes with heavy-duty radar sensors, eliminating frequent repairs in abrasive raw material bins.

Manage bulk assets in tough metallurgy sites—furnaces,
slag yards—and cut risks and blind spots?

Master Your Material Data.

Metallurgy Solutions - 3D silo volume measurement丨RETTAR

Frequently Asked Questions

Yes. With cooling accessories and specialized adapters, it operates in environmental temperatures up to 300°C, with built-in auto-shutdown protection against overheating.

The 3DPro2300 utilizes high-frequency radar technology that inherently penetrates extreme dust and steam without measurement interruption. Combined with an IP68-rated housing and dust explosion-proof certification, it delivers continuous, reliable readings in heavy dust environments.
