1. Introduction: The Hidden Hazard of Summer Coal Wall Clinging
During peak summer electricity demand, thermal power plants must operate at maximum coal capacity. However, high humidity and heavy rainstorms make wet coal highly cohesive, causing it to stick to silo walls and create hidden cavities or bridging.
This severe material caking and wall clinging drives two critical operational failure modes:
Bridging & Cavities: Cohesive coal sticks to the upper walls while material discharges from the bottom, creating hidden voids, rat-holes, and dangerous material bridging.
Blind Spots: Traditional single-point radar emits a narrow beam that measures the distance to just one specific point. When material bridging or uneven stacking occurs, it often mistakes a half-empty silo for a full one, leading to critical sudden fuel supply disruptions.
2. Deep-Seated Risks: Asymmetrical Structural Loading and Silo Structural Failure
Wall clinging shifts the material’s center of gravity, causing uneven weight distribution. Over time, this structural imbalance induces micro-fractures, visible concrete cracking, or catastrophic structural failure.
3. The 3D Solids Scanner: A High-Precision Tailored Solution
The RETTAR R&D team addresses these industry challenges by replacing single-point radar with a multi-beam, high-frequency 3D radar level transmitter.
360° High-Density Point Cloud Scanning: The 3D radar level transmitter emits multiple high-frequency beams throughout the entire silo volume. This matrix generates a real-time point-cloud grid that maps the precise geometry of wall clinging, internal cavities, and bridging, significantly eliminating the impact of measurement blind zones on inventory data.
Domain-Adaptive Algorithms: The 3D radar level transmitter is equipped with a specialized reconstruction algorithm. It eliminates transient noise and false reflections from cross-beams, ladders, and falling materials to sustain signal integrity in dense, dusty working environments.
80 GHz Millimeter-Wave Performance: Operating on an 80 GHz high frequency, the short wavelength ensures excellent directivity and exceptional penetration. The signal penetrates heavy dust and maintains stable transceiving capabilities even during damp dust accumulation on the sensor housing.

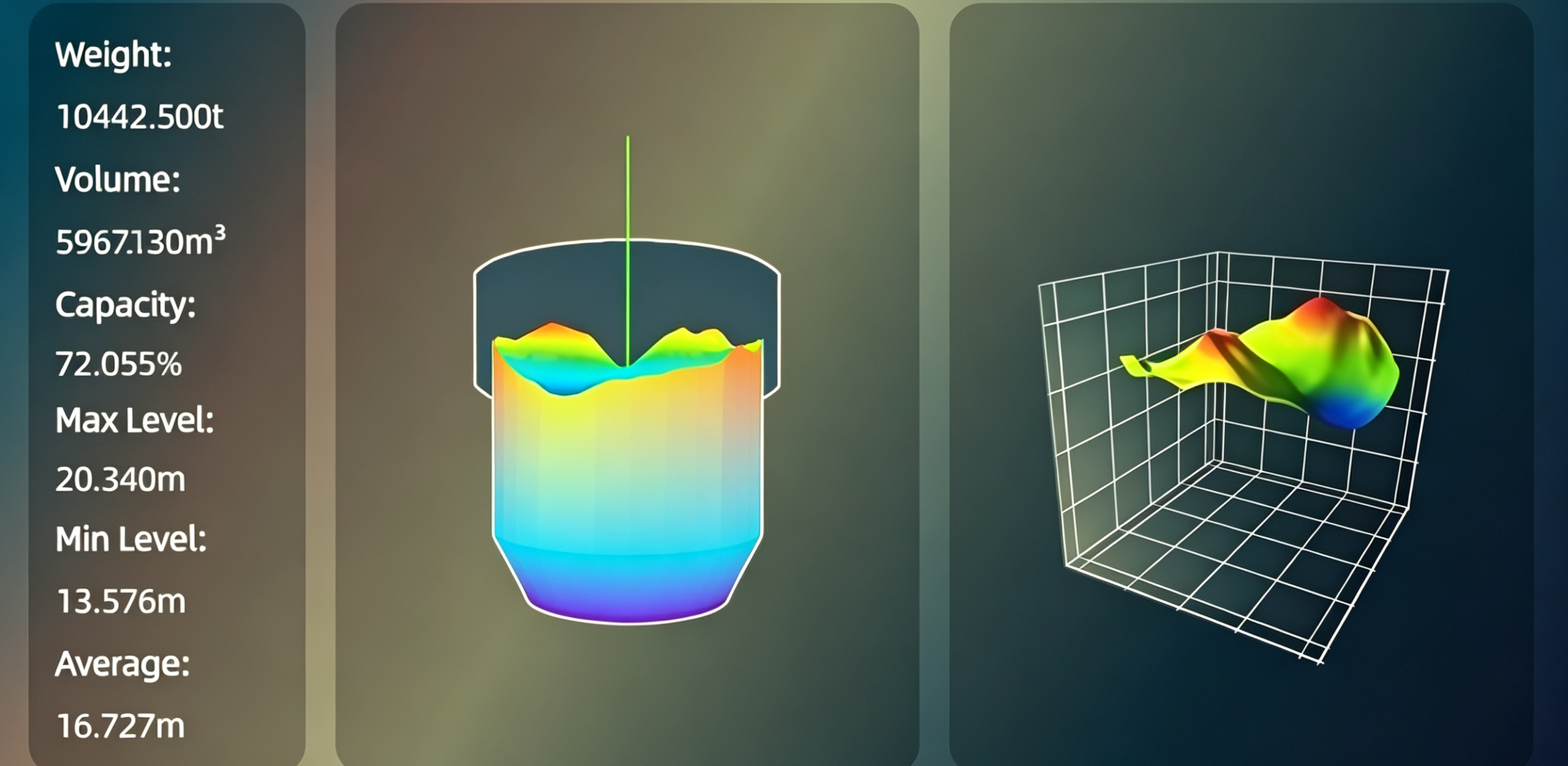

Real-Time 3D Topography Visualization: The system outputs an intuitive, 24/7 three-dimensional cloud map of the material surface. This gives control room operators immediate visibility into asymmetric stacking and uneven material weight distribution before it threatens wall integrity.
4. Strategic Application Value for Power Generation Enterprises
High-Precision Inventory Management: Delivers real-time coal stock calculations based on stock surface profile, giving fuel procurement and dispatch teams reliable data to manage peak summer scheduling.
Source Control of Structural Risk: Detects eccentric loading early so operators can balance lateral pressure on silo walls, preventing concrete cracking and reducing long-term maintenance costs.
Heavy-Duty Industrial Resilience: Operates continuously with zero manual intervention, maintaining peak accuracy under high temperatures, high humidity, thick dust, and wet coal caking.
5. Conclusion
Summer coal caking and bridging present severe, invisible hazards for thermal power plants. Conventional single-point instruments fail to resolve these complex formations, exposing facilities to supply disruptions and structural risks.
The 3D radar level transmitter eliminates this vulnerability by combining 80 GHz hardware with advanced spatial reconstruction algorithms. It delivers real-time 3D visualization for industrial silos, serving as a reliable dual-purpose solution for precise inventory management and structural safety monitoring during summer peak periods.
Hoping to secure stable plant operation and beat seasonal coal bridging risks this summer? Contact RETTAR’s specialists via WhatsApp or email to get your tailored 3D sensing measurement solution.
